Filter searchAD-PVO 6100 GT-DLE
Description
The AD-PVO 6100 GT-DLE flow heater set is designed for loading thermal hot water storage tanks according to the flow heater principle.
The benefit of this system, as compared to a fixed heating element installed directly in the water tank, is that the entire hot water tank can be charged. This means that significantly more energy can be stored in the same volume of water, as the layering in the tank is eliminated. Even if no heating element can be screwed in directly, this system is easy to install independently of the other ambient factors. The otherwise unused PV surplus is thus optimally used for thermal energy.

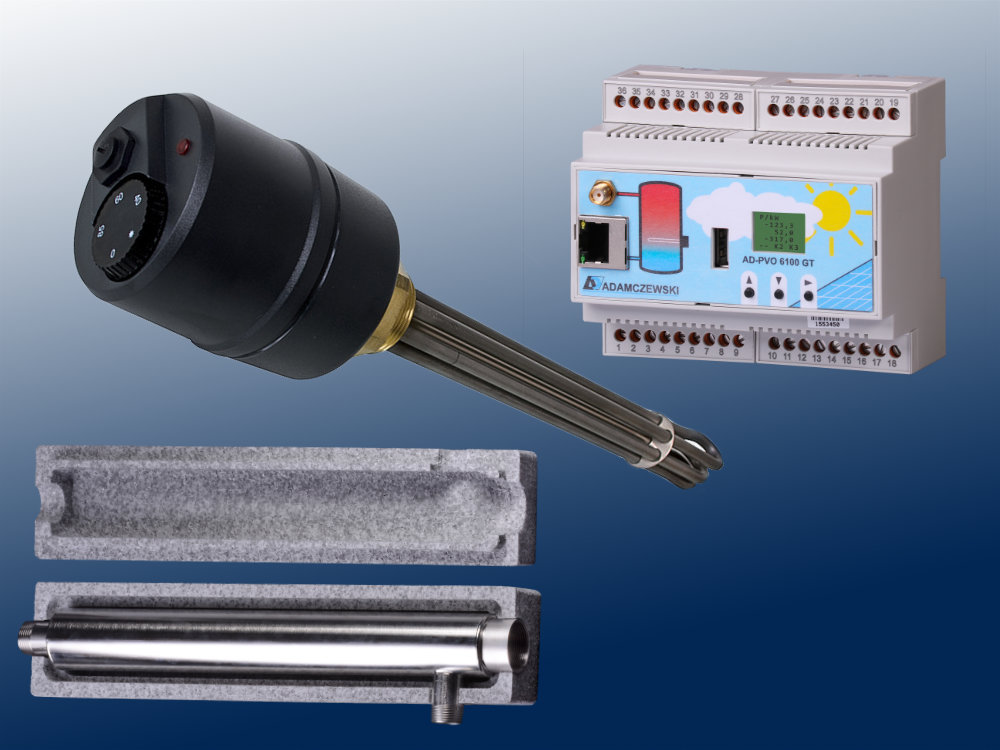

Individual components of the DLE set:
1 pc. AD-PVO 6100 GT Photovoltaik-Optimizer
1 pc. AD-HST 35 Screw-in heating element (1,5" with 3 Tube heaters 500W, 1.000W and 2.000W combinable)
1 pc. Stainless steel flow heater
1 pc. Circulation pump
News
Application
Charging hot water tanks with PV surplus according to the flow heater principle.
Specific characteristics
PV surplus controller - Circulation pump for the water flow through the flow heater
- Stainless steel pipe for heating element installation
- Electric heating element
- Integrated non-return valve on circulation pump
| Downloads | |
|---|---|
| Data sheet controller |  en-pvo6100gt.pdf (446 kB) |
| Data sheet heating element | en-hst35so.pdf (145 kB) |
| dle.pdf (88 kB) |
|
| Data sheet circulation pump | Lowara ecocirc PRO |
| Safety instructions | ad-safety-instructions.pdf (86 kB) |
