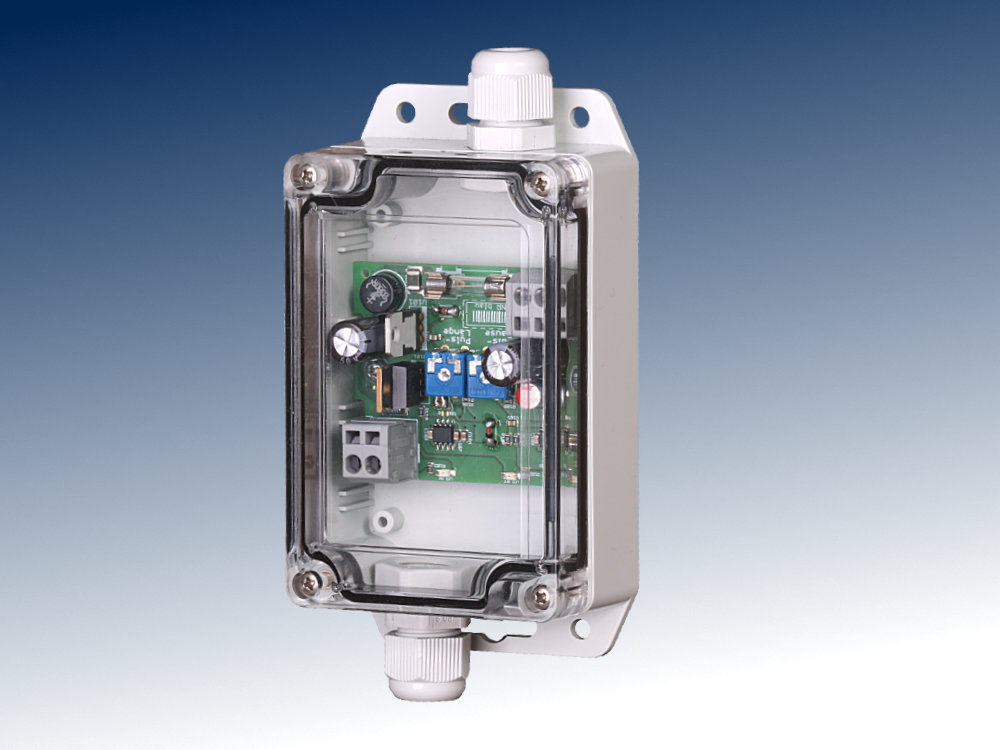

SALT VS1

Description

The SALT VS1 valve control unit is used for the pneumatic cleaning of filter systems. The VS1 activates a solenoid valve cyclically in order to clean the filter with bursts of compressed air. The control unit is supplied with 24 VDC. All necessary parameters can be set via control elements on the circuit board.

SALT Silo Anlagentechnik
Marsaner-Str. 19
D-74336 Brackenheim-Neipperg

Application

Pneumatic cleaning of filter systems

Specific characteristics

24 VDC supply
1 current-limited control output for solenoid valve
IP65 housing incl. cable fitting
Spring terminals
Setting the parameters via operating elements on the circuit board
LED indicator for control output and device status

Information

Downloads
Safety instructions	ad-safety-instructions.pdf (86 kB)

Technical specifications

Valve control output
Type	Active output (switched minus)
Nominal output voltage	24 V DC
Output voltage full load	Ub - 2V
Output voltage open circuit	Ub
Max. output current	1 A DC
Current limit	Ca. 2 A DC
Pulse duration	20...300 ms
Pulse pause	0,5...55 min
Supply
Voltage range DC	24 V DC +/- 10%
Nominal voltage DC	24 V DC
Power consumption DC	0,5 W (specification without valve)
Housing
Dimensions (WxHxD)	70x106x42 mm (without screw fittings)
Type of protection	IP 65
Connection method	Spring force terminal
Terminals, wire cross section	2,5 mm² flex wire / 2,5 mm² one wire
Weight	~ 175 g
Manner of fastening	Wall-mounted housing
Environmental conditions
Ambient temperature	-10 ... 60 °C
Storage and transport	-10 ... 70 °C (no condensation)
EMC
Product family standard	EN 61326-1 ¹⁾
Emitted interference	EN 55011, CISPR11 Cl. B, Gr. 1
Electrical safety requirements
Product family standard	EN 61010-1
Overvoltage category	II
Elevation	Max. 2000 m
Pollution degree	2
Protection circuits
Supply	Protection against overvoltage, overcurrent and reverse polarity
Control output	Protection against overcurrent

¹⁾ During checking, slight signal deviations are possible.

Block and wiring diagram

SALT VS1

Dimensions

SALT VS1

CAD / CAE Daten

CAD model is not yet available for this product.

The CAD product overview can be found at: adamczewski.partcommunity.com

Control elements:

Poti Pulse-Length:
This potentiometer can be used to set the pulse length in milliseconds for which the valve is active.
Setting range: 20...300 ms

Poti Pulse-Pause:
This potentiometer can be used to set the pulse pause in minutes. This corresponds to the pause between two pulses in succession.
Setting range: 0,5...55 min

Functional description:

When the supply voltage is switched on, the control unit immediately starts operating (green operating LED lights up), i.e. cleaning the filter with compressed air blasts. The SALT VS1 controls the valve with the specified pulse length. This is followed by a pause time with the time set on the potentiometer. The activation of the valve and the subsequent pause time are repeated cyclically. As soon as the supply voltage is switched off, cleaning is also stopped.
